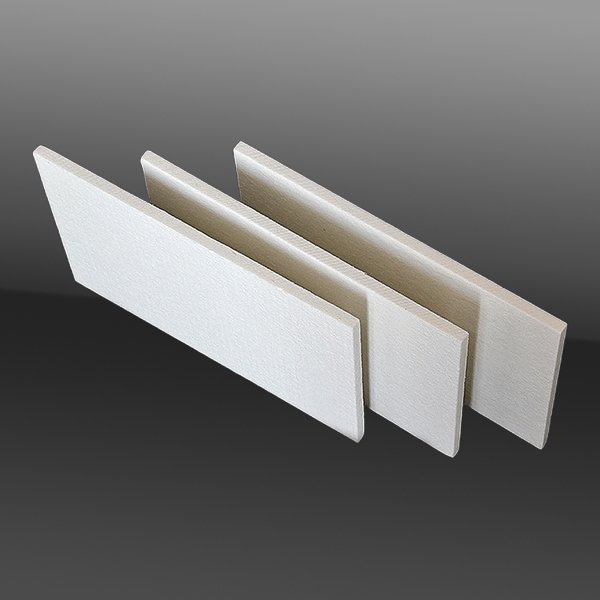

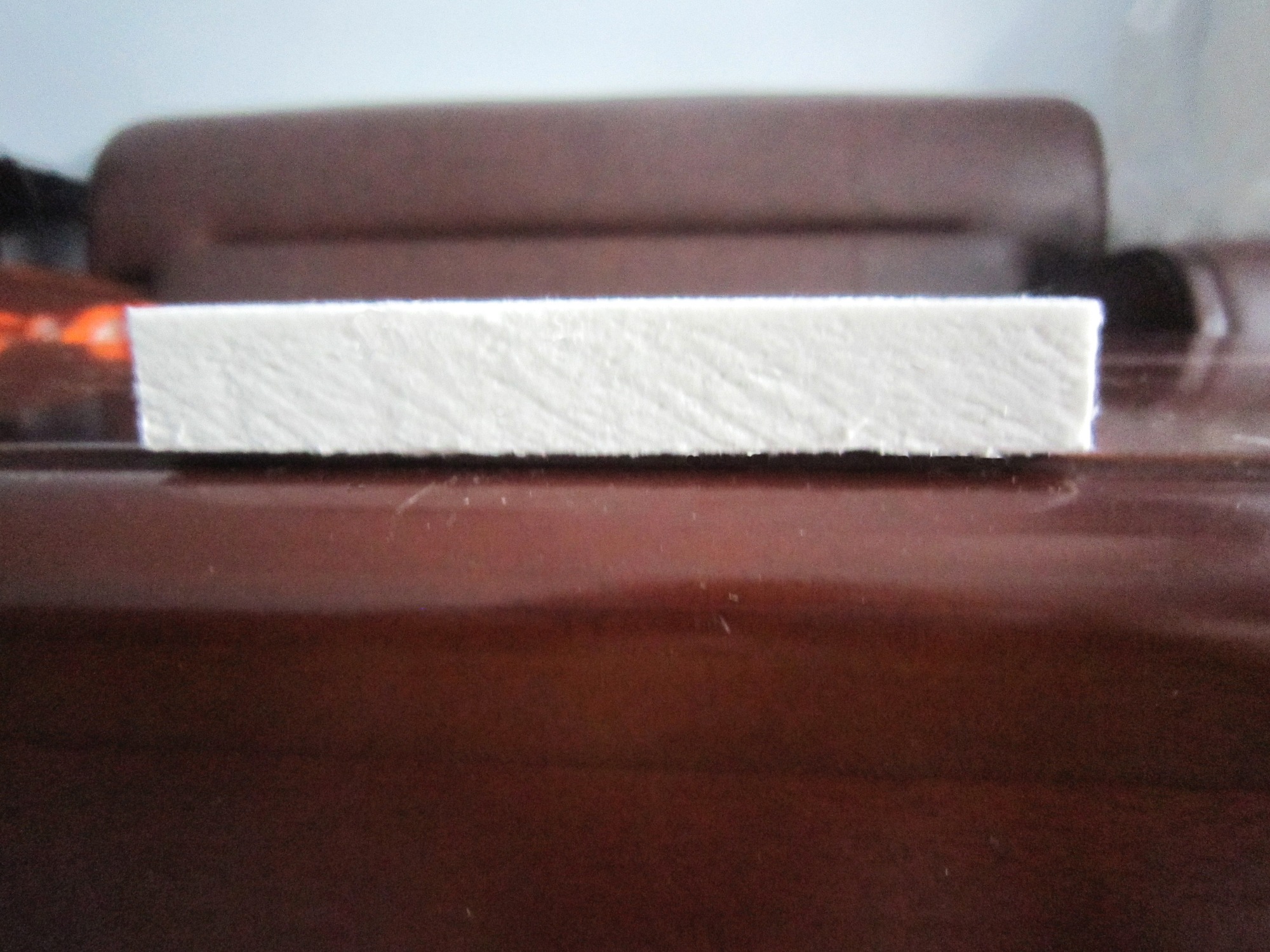

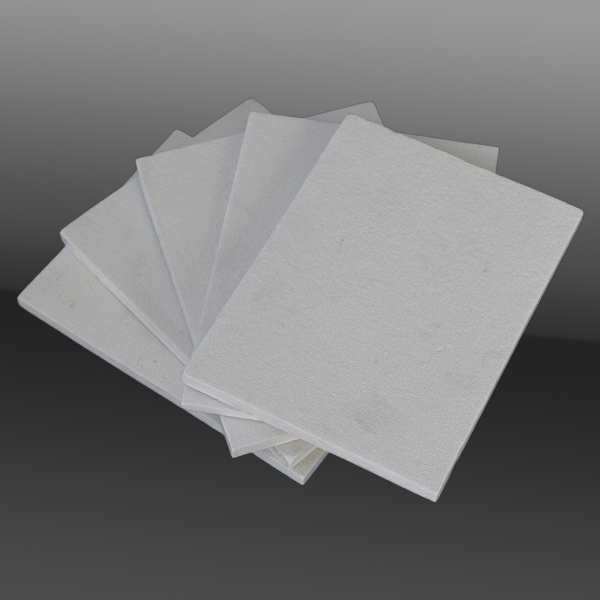

SUNTHERM HB (biosoluble) fiber board
This is a new development based on traditional ceramic fiber, the main components of which are MgO, CaO, and a small amount of organic binder, with the integrated functions of fire resistance, heat dissipation and heat insulation, can be used at higher temperatures, biosoluble fiber can replace part of the traditional ceramics. fiber, the use temperature of which can reach 1050 ℃ , and has excellent environmental performance.
Product parameters
| Item | Index | |
|
Temperature classification
|
1260 ℃ | |
| Fiber diameter | 3-5 μm | |
| Constant heating ramp (1000℃*24h) |
<4% | |
| Thermal conductivity (500℃) |
<0.153 | |
| SiO₂ | 63-66% | |
| MgO | 5-7% | |
| CaO | 26-28% | |
| Al₂O₃ |
<0.5% | |
| Fe₂O₃ |
<0.25% | |
Product scope
• Applications requiring high temperature and strength in bearing areas
• Construction, fire doors, fire insulation of walls
• High temperature pipe wall lining
• High temperature furnace insulation
• High temperature gasket
• Insulation panels for furnace with glass tank
• Furnace roof insulation
• Molten metal supply system
• Insulation of the combustion chamber
• Ladle furnace bed
• Shipping, aviation, precision industrial equipment
LEADING CERAMIC MANUFACTURER IN CHINA

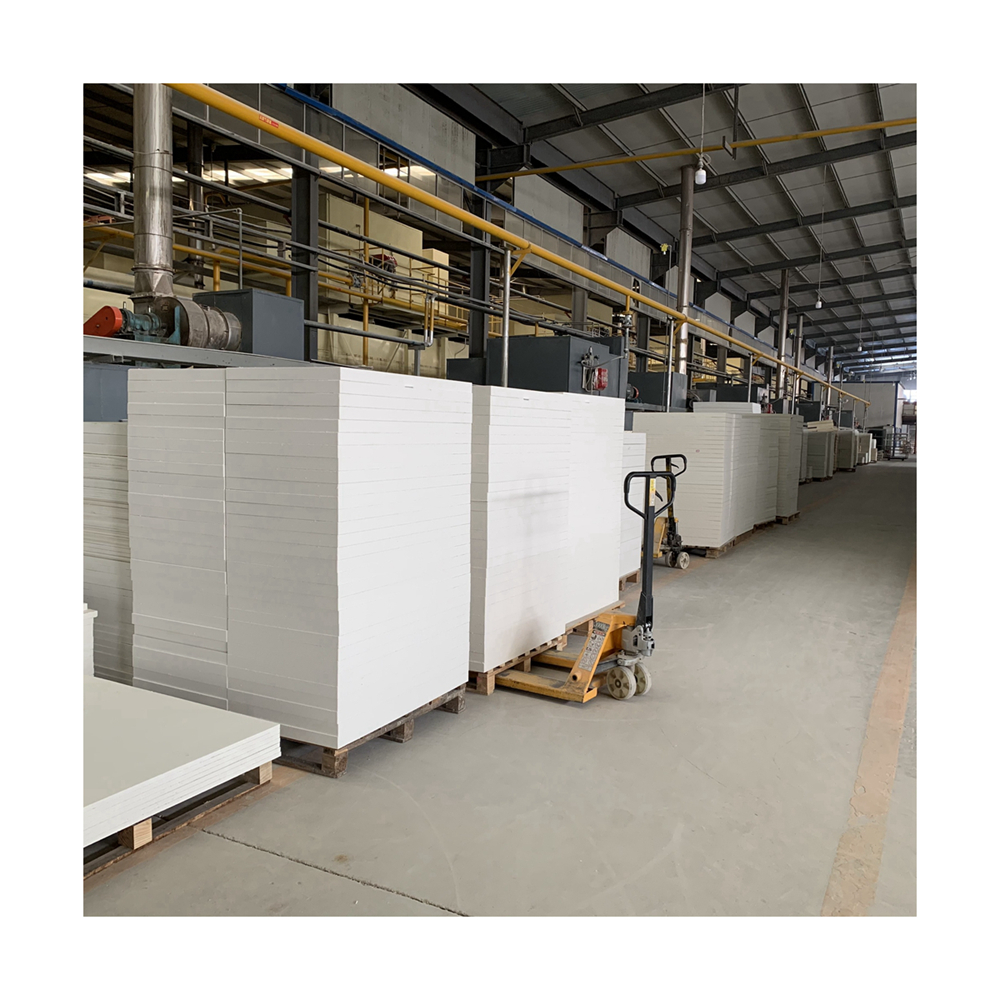

SUNTHERM series ceramic fiber products include: bulk ceramic fiber, blanket, cardboard, paper, modular, textile and vacuum molds, etc. SUNTHERM series refractory products include: refractory brick, refractory cement and refractory casting. Other Products: We also supply glass wool and rock wool. With 30 years of development, now we have a variety of production lines: 28 ceramic fiber blanket production lines, 6 ceramic fiber board production lines, 3 ceramic fiber paper production lines , 3 ceramic fiber special shape vacuum forming lines, 6 lines for the production of ceramic fiber textiles and workshops for the manufacture of other products. SUNTHERM ceramic fiber products are widely used in ferrous metallurgy, petrochemistry, metallurgy, electric power industry, electrical and building materials, aerospace, military, household appliances.
Please contact the seller for specific parameters. Thank you for your cooperation!
