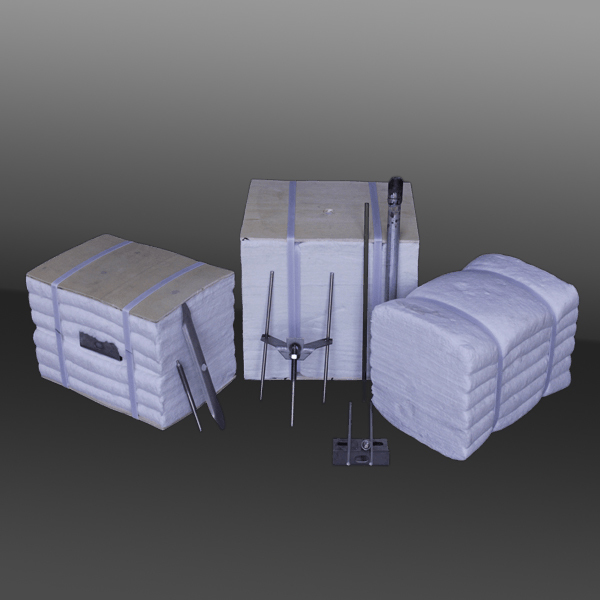

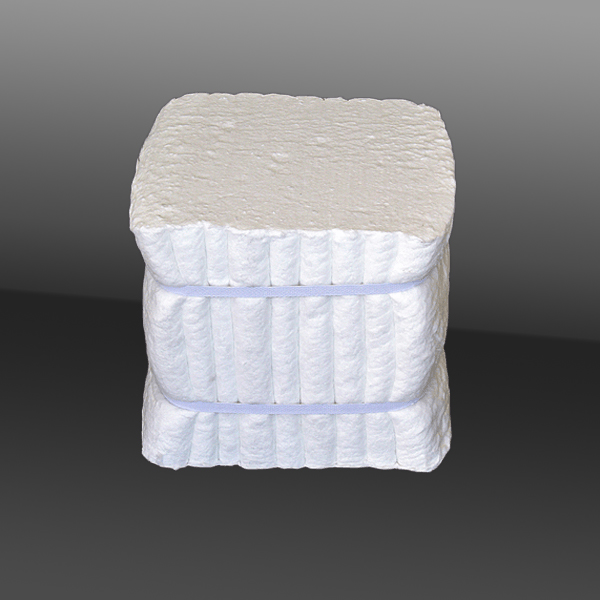

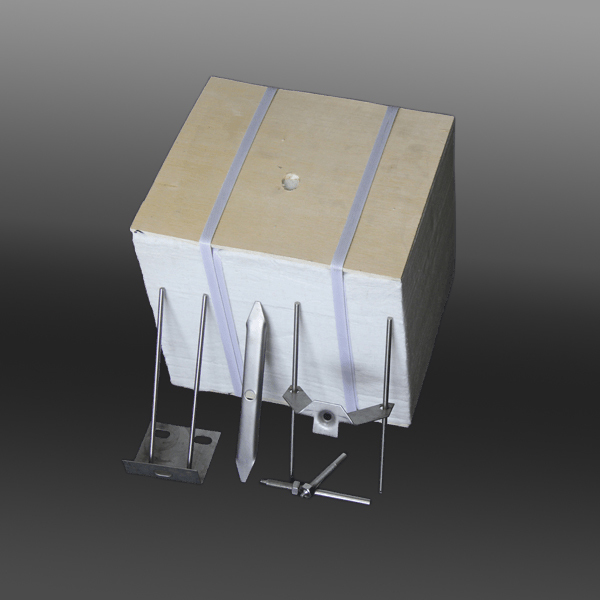

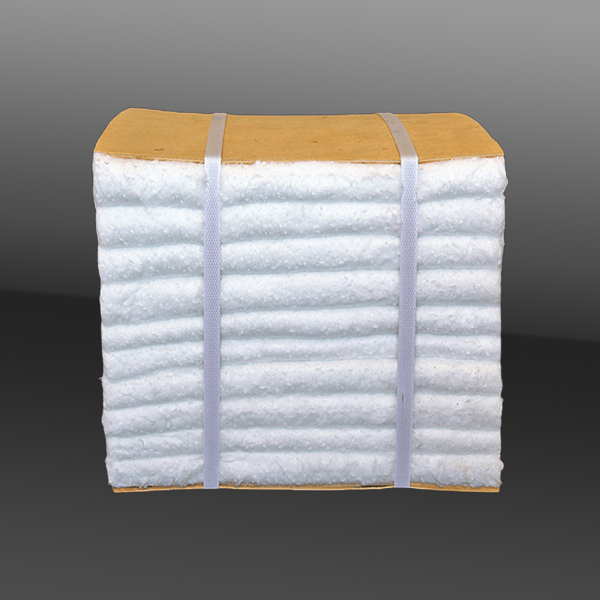

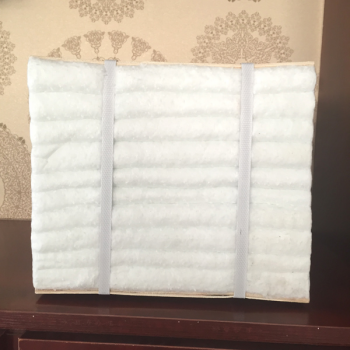

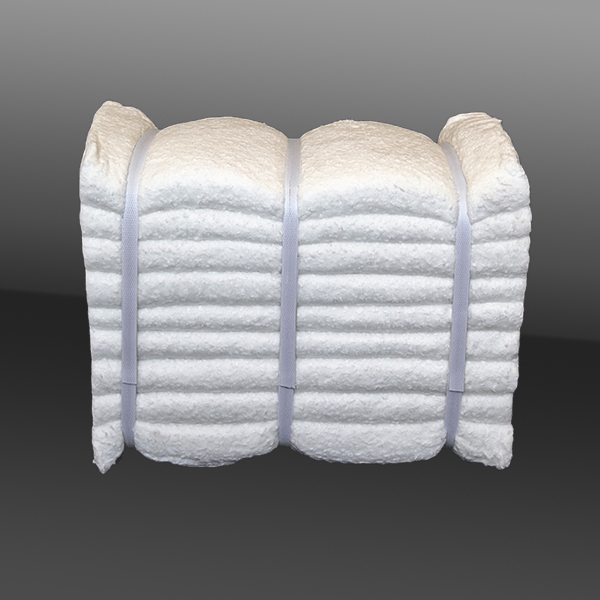

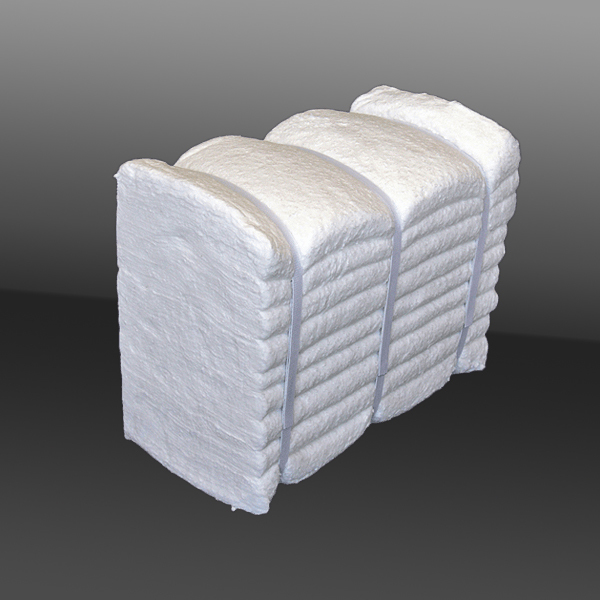

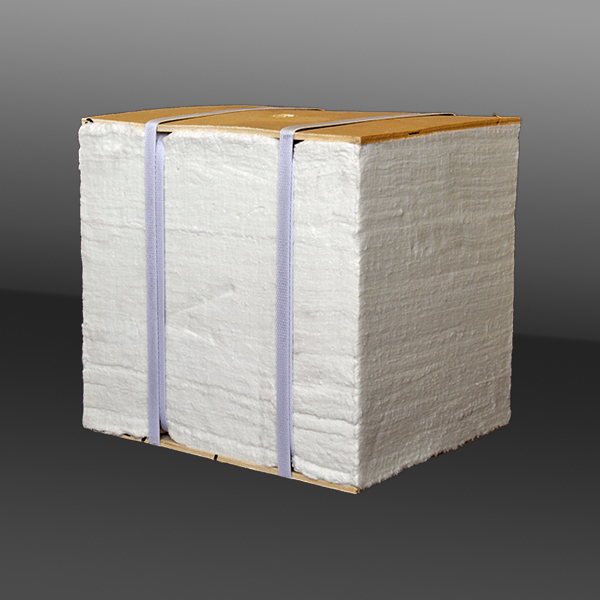

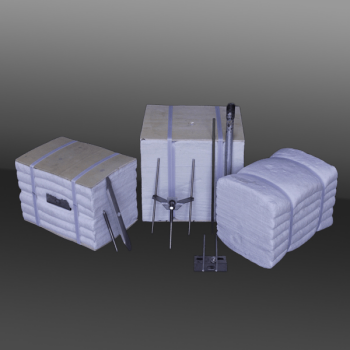

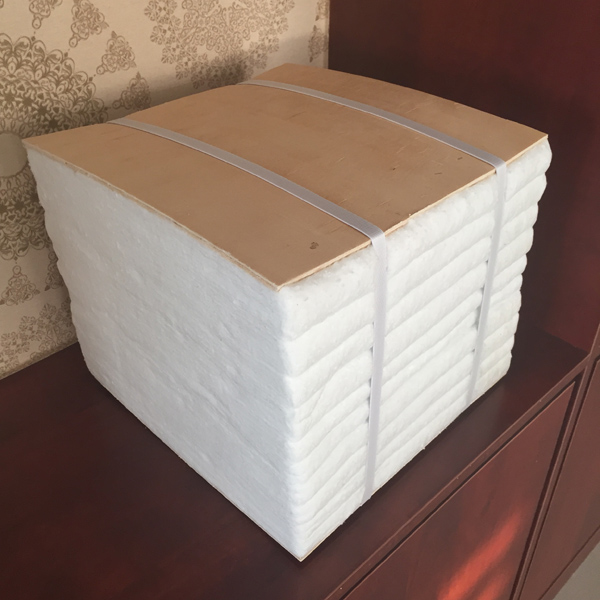

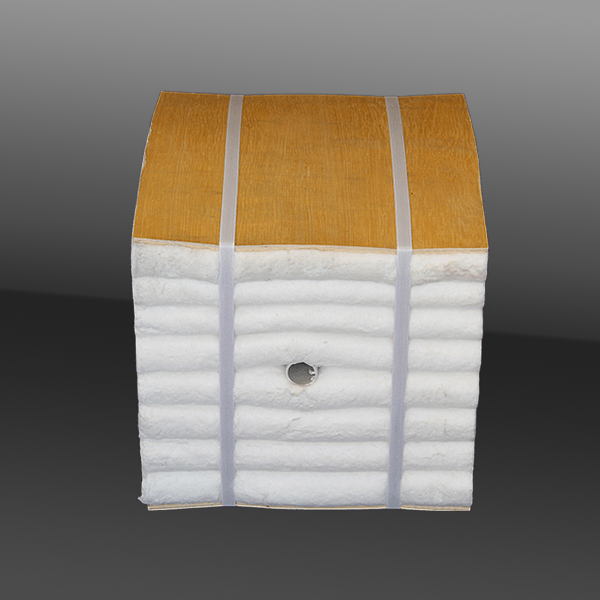

SUNTHERM HB (biosoluble) fiber module
It is a new development based on traditional ceramic fiber, the main components are MgO, CaO, with the integrated functions of fire retardant, heat dissipation and heat insulation, can be used at higher temperatures, biosoluble fiber can replace part of the traditional ceramic fiber, the use of temperature can reach 1050℃ and have excellent environmentally friendly features.
Product parameters
|
Subject |
Index |
|
Classification temperature |
1260℃ |
|
Fiber diameter |
3-5 μm |
|
Constant linear change during heating (900℃*12 h) |
-0.8％ |
|
Thermal conductivity |
350℃ 0.036 W/mk 600℃ 0.16 W/mk |
|
SiO₂ |
63-66% |
|
MgO |
5-7% |
|
CaO |
26-28% |
|
Al₂O₃ |
<0,5% |
|
Fe₂O₃ |
<0,25% |
Product scope
• The aluminum industry is a hot furnace
• Boiler insulation
• Pyrolysis furnace lining
• Furnace masonry
• Continuous and intermittent furnaces, etc.
• Petrochemical furnaces, cracking furnaces
• Steel industry furnace, annealing furnace, roller hearth furnace
• Kiln area Tunnel kilns in the ceramic industry, batch kilns.
• Recycling, combustion chamber
• High-end home appliance insulation device
